Functions and features:
Special equipment for hazelnut shelling. First, hazelnut was graded, and then each grade was shelled. The UN detached hazelnut during processing can automatically return to the sheller for the next shelling cycle.
The unit has high shelling efficiency, high kernel rate and easy operation and maintenance.
component:

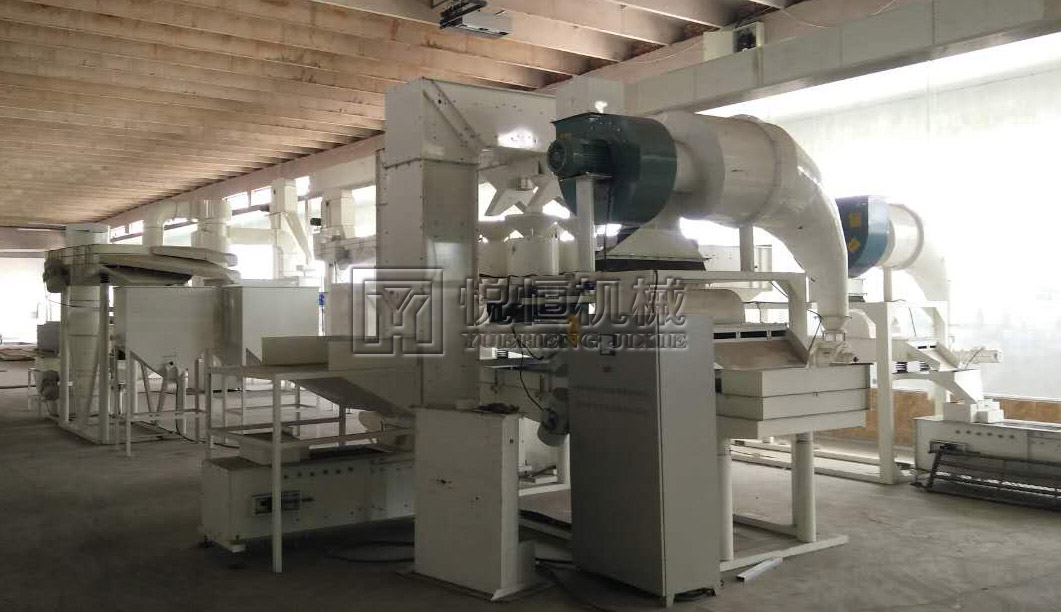

The assembly line consists of three units and control cabinet.
Grading unit: composed of hopper, elevator and classifier. This part can be divided into seven levels.
Shelling and sorting unit: composed of upper hopper, elevator, sheller, sorting screen and return linear screen.
Peeling unit: composed of upper hopper, screw hoist, double channel hoist and kernel separator (2 sets). This part can separate the kernel from the skin of the kernel.
Main parameters:
Power: 17.69kw (380V)
Raw material handling capacity:
Grading unit: 1000 kg / h; Shelling separation unit: 1000 kg / h; Peeling unit: 500 kg / h
Whole kernel rate: above 98%
Kernel content in shell: less than 2%
The percentage of shell in kernel is less than 3%
Total weight: 6.0t
Operator: 2
