[functions and features]
First, the apricot kernel was graded by waterline, and then each level was shelled. The apricot kernels that are not detached during processing can automatically return to the sheller for the next shelling cycle. The unit has high shelling efficiency, high kernel rate and easy operation and maintenance.
[components]

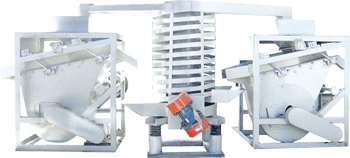

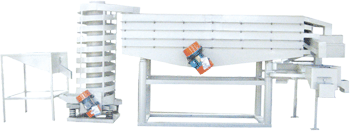

The assembly line consists of three units and control cabinet.
Grading unit: composed of hopper, elevator and classifier. This part can be divided into four levels.
Shelling and sorting unit: it is composed of upper hopper, bucket elevator, shelling machine, sorting screen, return material elevator and return material linear screen.
Peeling unit: composed of upper hopper, screw hoist, double channel hoist and kernel separator (2 sets). This part can separate the kernel from the skin of the kernel.
[main parameters]
Power: 9.08kw (380V)
Raw material handling capacity: 300-500 kg / h (depending on material)
Whole kernel rate: above 98%
Kernel content in shell: less than 0.3%
The percentage of shell in kernel is less than 2%
Floor area: 18.5M × 1.6m
Equipment height: 1.7m
Total weight: 3.0T
